상세 정보 |
|||
| 효과 터치 개체 크기: | >8mm | 터치 방법: | 손가락 또는 불투명 한 물체 |
|---|---|---|---|
| 위치 정확도: | <2mm | 연결 포트: | USB2.0 USB3.0 |
| 운영 체제: | 창 | 전원 공급 장치: | AC 100-240V, 50/60Hz |
| 저장: | 온도 : -30 ° C ~ 60 ° C 습도 : 0%~ 95% | 작업: | 온도 : -10 ° C ~ 45 ° C 습도 : 10%~ 90% |
| 색상: | 검정, 선택 다른 색상 --회색, 은색/검정색 | 핫키: | 사이드 보드용 단축키 포함 |
| 이름: | 디지털 보드 스마트 대화식 보드 | 접힌: | 선택 과목 |
| 유형: | 학교를위한 스마트 레코드 보드 | 크기: | 75인치 IFPD에 적합, 86/98인치 사용 가능 |
| 터치 포인트: | 원터치 포인트 | 애플리케이션: | 학교 교육, 교실 교육, 발표 |
| 보증: | 3 년 | 정확성: | 2mm |
| 설치: | 벽걸이형, 이동식 스탠드(옵션) | 사이드 보드: | 초크 용 녹색 보드, 마커 용 화이트 보드 |
제품 설명
Digital boards Infrared side boards for IFPD
Recoradble side boards work with Interactive flat panel, we also call it Interconnected interactive whiteboard, it combined with interactive whiteboard (Electronic Green board/Black board/Whiteboard)+ IFPD to achieve dual board interconnection and interactive function.

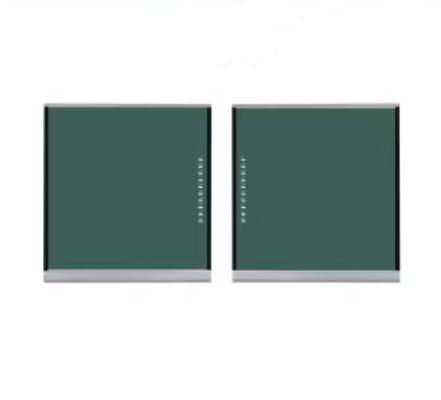

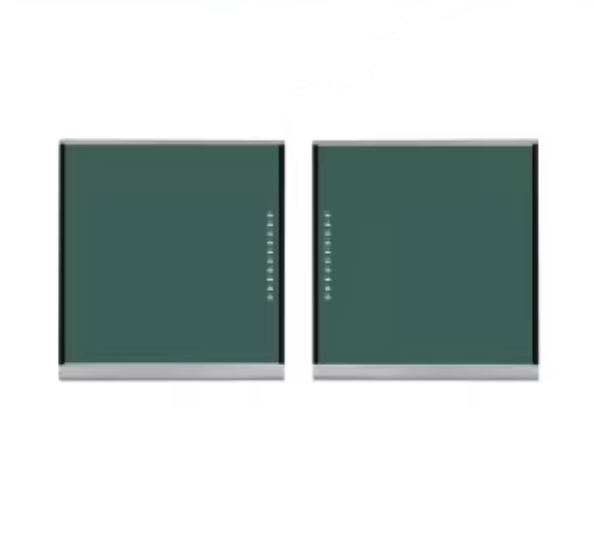

Green board/ Whiteboard
It can be written with any ordinary whiteboard pen for white board; chalk and dustless chalk for green/black board, without damaging the surface and has strong wear resistance.

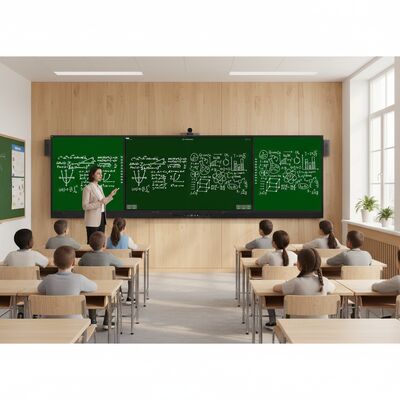

With our intelligent board, teachers can use electronic green board for traditional writing. It supports to save the annotation of the green board, forming the combination of intelligent teaching and traditional blackboard writing.
The writing on the green board can be saved as records according to the requirements of teachers,so as to send them to students as review materials.

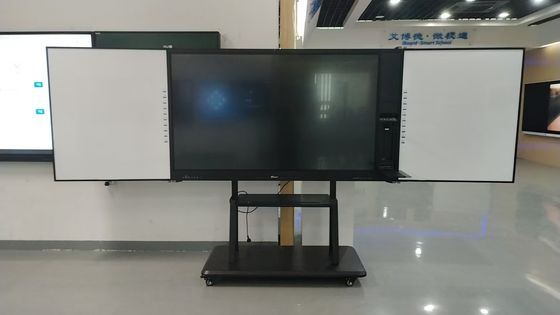

2 Infrared side boards , work with 75 inch interactive flat panel display, total length around 4.2m, height 1.03m, side boards in Green/ Black board for chalk writing, white board for marker writing.
Optional Side boards for 86 inch/ 98 inch Smart board, come with Wndows special whiteboard software for the side boards, writing, save and shared.
Drawing dimension for reference( 75 inch smart board+ AB side boards.)

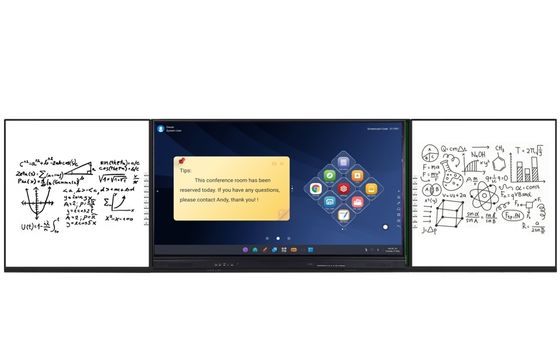

Optional in Smart board+ A side board
For more details, please feel free to contact our sales team: osd019@touch-easy.com
| Appearance | To match with the main display unit |
| Size | Customized as per the height of main display unit |
| Surface Selection | Whiteboard/Greenboard |
| Touch Technology | Infared touch |
| Touch method | Finger, Pointer or any other opaque object |
| Gesture Recognition | Support |
| File Saving | Support saving files as PPT/Word/PDF/image format. |
| Touch Point | 1 for side board, 20/50 for smart board |
| Cursor Speed | 180 dot /s |
| Touch Resolution | 32768x32768 |
| Effect Touch Object Size | >8mm |
| Touch Method | Finger or Pen |
| Positioning Accuracy | <2mm |
| Touch lifetime | More than 60,000,000 single touch or click |
| Connecting Port | USB 2.0/3.0 |
| Operating System | Windows , Linux, Mac, Android |
| Power Supply | USB power supply DC 4.6V- 5.0V <1W ( 200mA at 5V) |
| Working Condition | Indoor |
| Storage | Temperature: -30°C~60°C Humidity: 0%~95% |
| Operation | Temperature: -10°C~45°C Humidity: 10%~90% |
