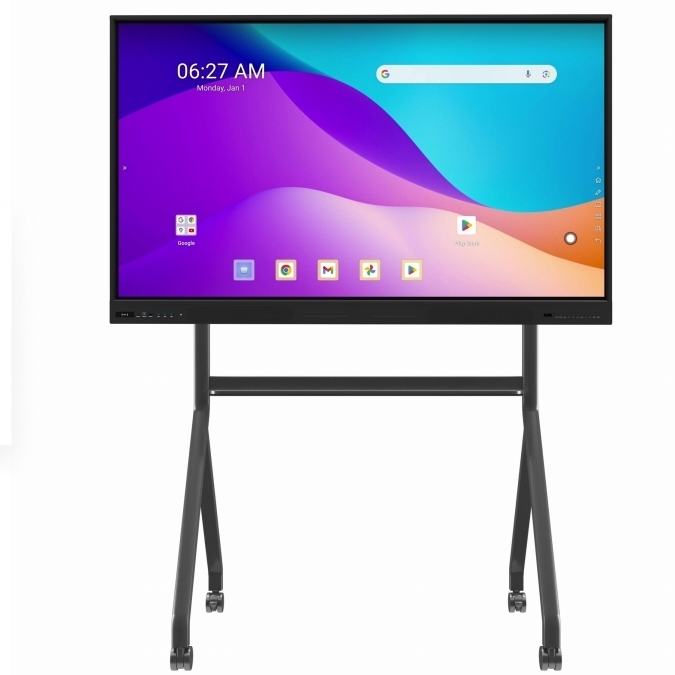

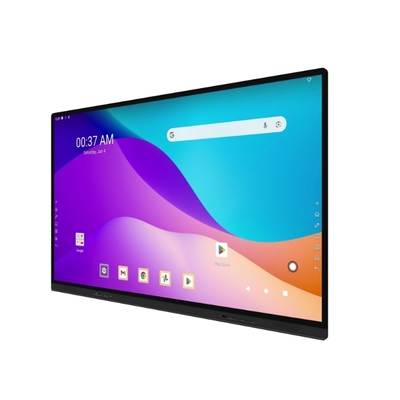

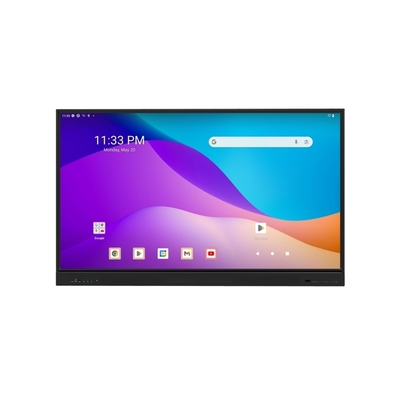

iBoard Google EDLA Certified 75 Inch Interactive Displays Flat Panel Smart Boards
제품 상세 정보:
| 원래 장소: | 중국 심천 |
| 브랜드 이름: | iBoard |
| 인증: | CE, FCC, RoHS, Reach, CCC, OHSAS, ISO9001, ISO14001 |
| 모델 번호: | TE-YL-75 |
결제 및 배송 조건:
| 최소 주문 수량: | 2개 |
|---|---|
| 가격: | TBD |
| 포장 세부 사항: | 상자 패키지, 목재 케이스 또는 목재 상자 선택 사항 |
| 배달 시간: | 20-30 일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 한 달에 100000 단위 |
|
상세 정보 |
|||
| 화면 크기: | 75인치 | 터치 포인트: | 안드로이드용 20포인트, 윈도우용 터치 포인트 40개 |
|---|---|---|---|
| 색상: | 검정, 회색, 은색 흰색(선택 사항) | 어플리케이션: | 교육 교육, 회의, 훈련, 가정 |
| 운영 체제: | 안드로이드에 탑재, 윈도우 선택 | 명도: | 400-500cd/m2 |
| 인터페이스: | USB, VGA, RS232, HDMI,... | 재료: | 알루미늄 합금 프레임 |
| 인증서: | CE, ROHS, FCC... | 측면 라디오: | 16:9 |
| 화면 크기: | 75" | 배송 방식: | 해상 운송, 항공 화물, 트럭 화물 |
| 보증: | 1년 | 전원공급장치: | AC 100-240V, 50/60Hz |
| 운영 시스템: | Andriod/Windows/Linux/Mac.etc. | 정확성: | 1 mm |
| 모바일 스탠드: | 선택 과목 | 카메라: | 48MP 또는 외부 카메라로 내장 된 옵션 |
| 마이크로폰: | 선택적으로 내장된 8개의 어레이 마이크 또는 기타 요청 | ||
제품 설명
75 inch iBoard Google EDLA certified
Interactive Flat Panel Display
Description of 75 inch Interactive displays
iBoard Google EDLA certified Interactive Touch Solutions for School Classroom, office, conference presentation, Trainning, annotation ect.
Built in latest Android ( 8GB+128GB, 16GB+256GB optional), come with OPS slot for windows system. Camera& mic optional, different frame color, mobile stands and other relative products for option.
Google Enterprise Device Licensing Agreement (EDLA) certification ensures the IFPD has compatibility and optimal performance with Google applications and services, whether it is for education, busess, or entertainment. You can also use (Sheets, Slides, Meet, and more to boost your prouctivity and collaboration.
We have a strong R&D team and our IFPD is independently developed and produced, integrates LED display, computer, speaker, electronic whiteboard, TV and other functions in one. With various experience on making OEM/ODM interactive flat panels and interactive whiteboard, products sold to more than 80 countires in the world.
We have Own developed Infrared technology and whiteboard software for free;
SKD support;
Easy for after-sales service;
Good quality control;
Firmware upgrades for lifetime.
Specifecation - iBoard YL series (EDLA version)
| Model | TE-YL-75 | |
| Dispaly Backlight | D-LED | |
| Resolution | True 4K UHD (3840 x 2160) @ 60Hz | |
| Brightness | 450 cd/㎡ | |
| Contrast | 1200:1 (Typical) | |
| Screen Size(mm) | 1649.7*927.9 mm | |
| Aspect Ratio | 16:9 | |
| View Angle | 178° | |
| Screen Mode | 16:9/4:3/dot to dot/full screen | |
| Color Depth | 10-bit (1.07 Billion colors) | |
| Panel Response Time | 8 ms | |
| DPI (Pixel Density) | 59 | |
| Working Life | 50,000 Hours | |
| AG Tempered Glass | 4mm, MoHS Level 7 hardness | |
|
Android Specification |
Android 13.0, EDLA certified | |
| CPU: A73*4+A53*4 @ 2.28GHz | ||
| GPU : G52*8 | ||
| WIFI6 Dual Band (2.4GHz & 5GHz)) & BT 2.1 + EDR / 4.2 / 5.0 | ||
| RAM : 8GB | ||
| ROM :128GB | ||
| Full support for Full HD and 4K relosution (with OPS slot working with 4k 60Hz); | ||
| The file manager is supported, AI function support, built in whiteboard software. | ||
| AirPlay & TranScreen are supported, 9 screen share optional. | ||
| Local and online supportfor music player. | ||
|
Input Ports |
Rear: HDMI x2 (4K@60Hz), USB2.0x1,USB 3.0 x2, TOUCH USB x 2, TF card x1, RS232 x1, RJ45 x1, MIC x1, DP x1 (4K@60Hz), VGA/Audio x1, USB-C x1 (supports USB/touch/image/video 4K@60Hz/fast charge) |
|
| Front: 1 x HDMI2.0 , 1 x USB-C (support USB/touch/image/video 4K@60Hz/ fast charge) , 3 x USB 3.0 , 1 x USB-B (Touch) | ||
| Output Ports | HDMI OUT x1(4K@60Hz), Coxal x1, Headphonex 1 , RJ45 out x1 | |
| Front Button | 1X POWER(on/off) button, or 11 buttons | |
| Voltage | AC(100～240)V-50/60HZ | |
| Speakers | 2x 20W | |
| Power Range | Standby Power<1W | |
| Rated Power<350W | ||
|
Touch Parameter |
Touch Technology | Infared Touch |
| Touch Points | 20 touch points for Android, 40 for Windows | |
| Writing Mode | Finger or any opaque object | |
| Accuracy | <1mm | |
| Response Time | 5ms | |
| Cusor Speed | 180 dot/s | |
| Connection Port | USB 2.0, USB 3.0 | |
| Operating System | Windows/Linux/Mac/Android | |
| Working Temperature | 0℃-40℃ | |
| OPS computer | optional in i5/i7-12/13th, 8GB/16GB+256GB/512GB depends on request. | |
| Accessories | Magnetic Pens*2, HDMI Cable*1, Touch USB cable*1, Power Cable*1, Remoter*1, Wall mounting bracket | |
| Product sizes(mm) | 1707*1030*85 | |
|
Built in Camera ( optional) |
Optional built in 48MP camera, or AI camera as request | |
| Built in Array Microphone (optional) | 8 array microphones | |
| NFC function (optional) | for login in, device unlock... | |
| Weights (kg) | 52/64 | |
| Cartons (mm) | 1835x1173x165 | |
Remark: For more details of the specification , please contact our sales team osd019@touch-easy.com to know more detials.
All features and specifications are subject to change without notice.
