상세 정보 |
|||
| 상품 이름: | 가지고 다닐 수 있는 인터랙티브 화이트보드, 가지고 다닐 수 있는 IWB | 사이즈: | 40 -150 |
|---|---|---|---|
| 기술: | 광학 | 접촉 점: | 10 |
| 결의안: | 4096*4096 | 필터: | 소프트웨어는 자동 조절하고 안정성을 강화합니다. |
| 위치정확도: | ±1 화소 | 종횡비: | 4:3;16:9;16:10 |
| 양상 라디오: | 16:10, 16:9... | 인터페이스: | USB, VGA, RS232, HDMI |
| 화면 크기: | 65 ", 75", 86 ", 98" | 멀티터치: | 최대 40 점 |
| 핫키: | 양면 핫키 | 운송 방식: | 해상 운송 공기 운송 트럭화물 |
| 터치 포인트: | 20 점 | 보증: | 1년 |
| 전원 공급: | AC 100-240V, 50/60Hz | 운영 시스템: | Andriod/Windows/Linux/Mac.etc. |
| 정확성: | 2 밀리미터 | 이동 스탠드: | 선택 사항 |
| 색상: | 검정 또는 OEM | ||
| 강조하다: | 손가락 터치 가지고 다닐 수 있는 인터랙티브 화이트보드,4096*4096 가지고 다닐 수 있는 인터랙티브 화이트보드 |
||
제품 설명
Finger touch Portable Interactive Whiteboard support 10pints 40''-150''
Product introduction
We are work on portable interactive whiteboard since 2010. After seven years development, we are the pioneer and leader of portable pen touch interactive whiteboard in China. Now our company has successfully developed and produced the 5th Generation Portable Interactive Whiteboard—3D Touch 5, which is more stable, easy to install and use, response quickly and latency less. 3D Touch 5 use optical technology,it can convert any flat surface into interactive whiteboard.Advantage over traditional whiteboard:auto calibration;write on any flat surface,(such as wall,blackboard,LCD panel);active size from 40-150inch;low cost.
Function Introduction
- High stability: Use the advanced algorithm to avoid the affect of the light.
- Support three ways calibration(Picture A).5s auto calibration(calibrate dot is up to 289units),Semi auto calibration,
- Support 10 points touch.Ten people write together without any interference. (Need equip with more pens) (as Picture B)
- Support size from: 40-150 inch.
- Portable, high integration and easy to install: Total weight is only around 500g. The installation is very easy, just install the sensor mounted to projector or ceiling, No skill needed.
- Sensor with the flash chips: Don’t need to calibration if you change the computer with the same resolution ratio. It save time, and make the use easier.
- Automatic-control filter.When calibrating,the filter keep open;when finished,the filter close.
- Turn common board or wall to touch board. It can turn any flat surface (whiteboard, wall and so on) into ir pen touchable.
Specification
| Portable Pen touch interactive whiteboard | |
| Calibration | Automatic(5s) / Manual (25/36 points) |
| Technology | Optical Technology |
| Resolution | 4096*4096 |
| Multi-writing | Max 30 people can write at the same time |
| Latency | <30ms |
| Filter | Software auto-control, enhance stability. |
| Minimum Active Size | 40-inch |
| Max Active Size | 150-inch |
| Positional Accuracy | ±1 Pixel |
| Aspect Ratio | 4:3；16:9；16:10 |
| Projector ratio |
Ultra short throw:0.15, installation distance:0.35m; Ultra short throw:0.21, installation distance:0.45m; Ultra short throw:0.28, installation distance:0.45m; Short throw:0.34, installation distance:0.54m； Long throw:0.86, installation distance:1.4m; Long throw:1.34, installation distance: 2.2m. (Depends on 80’’ projection screen aspect ratio:4:3) |
| Power Consumption | 100mw |
| Signal refresh rate | 120fps. |
| Connect | The sensor and computer are connected by USB Cable |
| Weight | 0.25kg |
| OS Requirement | Windows XP, Vista, Windows 7,windows 8,Windows10,Android |
| Software | Calibration software(driver) and GLboard(education software) |
| Certification | CE, FCC |
| Warranty | 3-year |

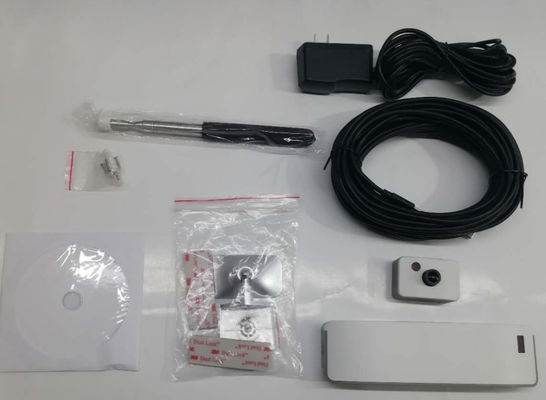

| Package | 1. Sensor 2..Mounts 3.USB cable (12m*1) 4.Infrared pen 5.Manual |
