Factory Price 4k 85 Inch Touch Screen Multi-language Software Lcd Smart Board Android Interactive board for school
제품 상세 정보:
| 원래 장소: | 중국 심천 |
| 브랜드 이름: | iBoard or OEM |
| 인증: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| 모델 번호: | TE-YL5C |
결제 및 배송 조건:
| 최소 주문 수량: | 10 |
|---|---|
| 가격: | USD700-USD1800 per pieces |
| 포장 세부 사항: | 상자 패키지 |
| 배달 시간: | 30 일 |
| 지불 조건: | t/t, l/c |
| 공급 능력: | 한 달에 100000 단위 |
|
상세 정보 |
|||
| 유형: | 적외선,용량,인터랙티브 평면 패널,LCD 터치 스크린 | 인터페이스 유형: | USB,D-Sub,DVI,Serial,VGA,HDMI,DP,등 |
|---|---|---|---|
| 해결: | 3840*2160 | 화면 크기: | 65 ", 75 인치, 86 인치, 98 인치 |
| 제품 이름: | 대화식 터치 패널, LCD 스마트 보드 | 터치 포인트: | 10 점, 사용자 정의, 1 ~ 20 점, 20 점, 32 점, 40 점 |
| 색상: | 검정, 검정/백색/금/맞춤형, 은빛/검정색 | 신청: | 교육, 회의, 홈, 훈련, 교육 |
| 운영 체제: | Win2000/xp/vista/7/8 이상, Android8.0, Android 5.0+Win7/10 옵션, Vista, Android+Win7/10 옵션 | CPU: | A73*2+A53*2 |
| GPU: | 말리-G51 | 명도: | 350cd/m2 |
| 인터페이스: | USB, VGA, RS232, HDMI | 보증: | 1 년 |
| 재료: | 알루미늄 합금 프레임 | 보기 각도: | 178' (H) / 178' (V) |
| 화면 유형: | 주도하는, LCD | 기능: | 프로젝터, 태블릿, 글쓰기 보드, PC, TV |
| 측면 라디오: | 16:10, 16 : 9 ... | 화면 크기: | 65 ", 75", 86 ", 98" |
| 멀티 터치: | 최대 40 점 | 핫키: | 양면 핫키 |
| 배송 방식: | 해상 운송 공기 운송 트럭화물 | 터치 포인트: | 20 점 |
| 전원 공급 장치: | AC 100-240V, 50/60Hz | 운영 시스템: | Andriod/Windows/Linux/Mac.etc. |
| 정확성: | 2mm | 모바일 스탠드: | 선택 과목 |
| 그림 물감: | 검은 색 또는 OEM | ||
제품 설명

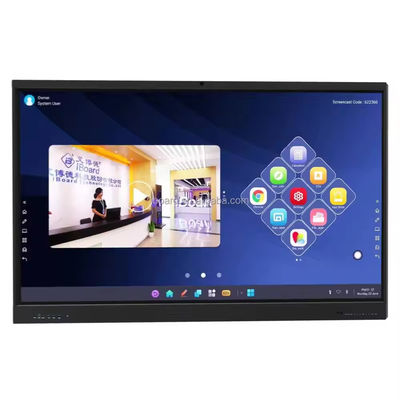

Factory Price 4k 85 Inch Touch Screen Multi-language Software Lcd Smart Board Android Interactive board for school
Ⅰ. Description Of interactive touch panel
A IR interactive touch panel is a computer driven device, allowing users to access and manipulate electronic files by means of a LCD display. The interactive LCD will be connected to a computer with USB, and the computer then connected back to the LCD with a video cable.It is as known as interactive screen, interactive whiteboard, smart whiteboard, touch screen display, touch monitor, LED touch monitor, touch interactive display, interactive flat panel display, touchscreens , etc.

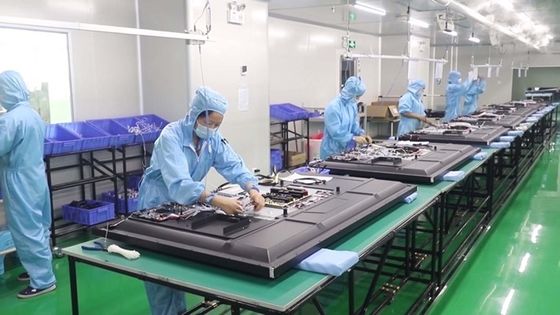

Our company has a strong R&D team and our interactive touch panel is independently developed and produced, integrates LED display, computer, speaker, electronic whiteboard, TV and other functions in one.
II. Our Strength:
14 years' experience on making OEM/ODM interactive flat panels and digital interactive whiteboard
products sold to more than 80 countires in the world
Own developed Infrared technology
ODM/OEM Support
SKD support
Customized size
Easy for after-sales service
Shortest delivery time
Top quality in this field
Best Value
II. Product Advantage Feactures
With three side ultra slim bezel, the bezel width is only 10mm, adding the black edge of display area, only 20mm.
With non-air gap (zero gap) glass design, make writing experience very good and actual visual angle wider...
III. Specification
| Model | TE-YL5C-65 | TE-YL5C-75 | TE-YL5C-86 | |
| Dispaly Backlight | D-LED Backlight | |||
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 | |
| Brightness | 350 cd/㎡ | 350 cd/㎡ | 350 cd/㎡ | |
| Contrast | 1200:1 | 1200:1 | 1200:1 | |
| Screen Size(mm) | 1428.5*803.5 | 1649.7*927.9 | 1895.04*1065.96 | |
| Aspect Ratio | 16:9 | |||
| View Angle | 178° | |||
| Screen Mode | 16:9/4:3/dot to dot/full screen | |||
| Color Depth | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | |
| Panel Response Time | 8ms | 8ms | 8ms | |
| Suport Resolution | 1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080/3840*2160@60HZ | |||
|
Android Specification |
Android 8.0 | |||
|
2 x ARM Cortex-A73@1.5GHz 2 x ARM Cortex-A53@1.5GHz |
||||
| ARM Mali-G51450MHz | ||||
| Ram: 4G | ||||
| Storage: 32G | ||||
| I/O Ports | Please contact us to know more detail specification | |||
| Front Button | POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,PC,ES,ENTER,HOME | |||
| Built in camera | 8 Mega Pixels | |||
| Built in Microphone | 4 array built in microphones | |||
| Voltage | AC(100～240)V-50/60HZ | |||
| Power Range | Standby Power<1W | Standby Power<1W | Standby Power<1W | |
| Rated Power<230W | Rated Power<350W | Rated Power<415W | ||
Remark: For more details of the specification , please contact us to know more detials.
