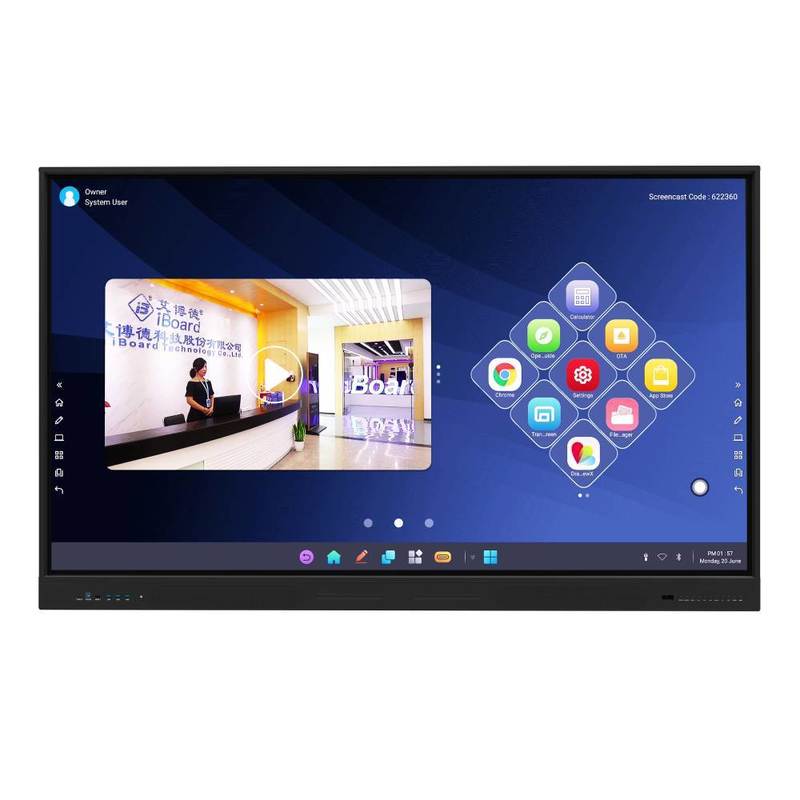

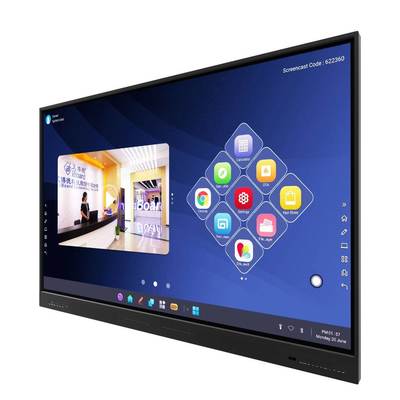

Iboard YL5W-75 Brochure for Android 13.0 8G 128G 500cd/m2 With Speaker Wifi Camera And Mic For School Project Office meetings Use
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | iBoard |
| 인증: | CE/ROHS/LV/IEC/ISO certificates,etc. |
| 모델 번호: | TE-YL5W-75 |
| 문서: | Iboard YL5W-75 Brochure for...8G.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1pc |
|---|---|
| 가격: | USD990-1100/pc |
| 포장 세부 사항: | 상자 상자, 나무 상자 또는 상자가 포함 된 선택적 |
| 배달 시간: | 15-18 근무일 |
| 지불 조건: | l/c, t/t |
| 공급 능력: | 한 달에 3000pc |
|
상세 정보 |
|||
| 카메라: | 내장 옵션 | 스피커: | 20W × 2 + 20W 서브 우퍼 |
|---|---|---|---|
| 마이크로폰: | 카메라와 함께 선택 사항 | 와이파이: | 6 |
| 베사 마운트: | 600 × 400 mm | ||
제품 설명
iboard YL5W-75 Brochure for Android 13.0 8G 128G 500cd/m2 With Speaker Wifi Camera And Mic For School Project Office meetings Use
Features:
75" (IPS, Ultra HD 4K) - Resolution: 3840x2160 (UHD) - Glow: 500 nits - Contrast: 1200:1 (typical), 6000:1 (DCR) - Display area: 1649.5mm(H)x927.3mm(V) - Response time: 8 ms - Viewing angles: 178° (H) / 178° (V) - Surface treatment: Anti-reflective, 7H hardness - Backlight lifespan:50,000 hours (at 8 hours per day)
- Guy:Ultra Fine Touch (infrared recognition) - Touch points: 50/40(Windows)/(Android) - Touch resolution: 32,768 × 32,768 - Pencils included:2(IBOARD Pen)
--Android sytem: A73*4+A53*4 RAM 8GB Storage : 128GB, Android 13
--Certificate:1.ENVIRONMENTAL MANAGEMENT SYSTEM CERTIFICATE GB/T24001-2016/ISO14001:2015
2.QUALITY MANAGEMENT SYSTEM CERTIFICATE ISO 9001:2015 standard
3.EMC
4.CE/LVD
5.ROHS
6.IECEE IEC 62368-1:2018
7.ENERG STAR
Specification sheet:
| Item | Iboard YL5W-75 Brochure for Android 13.0 8G 128G 500cd/m2 With Speaker Wifi Camera And Mic For School Project Office meetings Use |
| Model | TE-YL5W-75 |
| Backlight type | D-LED Backlight |
| Resolution | 3840*2160 Ultra HD 4K |
| Brightness | 500 cd/㎡ |
| Contrast ratio | 1200:1 (typical), 6000:1 (DCR) |
| Screen size (mm) | 1649.5*927.3 |
| Viewing angle | 178° (H) / 178° (V) |
| Backlight lifespan | 50,000 hours (at 8 hours per day) |
| Paenl response time | 8ms |
| Surface treatment/Glass | Anti-reflective, 7H hardness,Anti-glare |
| Touch technology | Ultra Fine Touch (infrared recognition) |
| Touch points | 40 (Windows)/(Android) - Pencils included |
| Touch resolution | 32,768 × 32,768 |
| Android version | 13 |
| CPU | CPU: Octa-core (ARM Cortex-A73×4 + Cortex-A53×4) - RAM: 8 GB - Storage:128GB |
| Input ports |
Rear: HDMI x2, USB2.0x1,USB 3.0 x2, TOUCH USB x 2, TF card x1, RS232 x1, RJ45 In x1, MIC x1, DP x1 , VGA/Audio x1, USB-C x1(65W PD Charge) , OPS slotx1 Front: USB 3.0x 3 , HDMI2.0x 1, Touch USB B Typex 1, USB-Cx 1 |
| Output Ports | HDMI OUT x1, Coaxial x1, Headphonex 1 , RJ45 out x1 |
| Light sensor | Yes, it is an integrated brightness detector that automatically adjusts the brightness of the panel according to ambient light. |
| Camera & Mic | external camera and mic mounted ,Model: IBM20 |
| Voltage | AC(100～240)V-50/60HZ |
| VESA MOUNT | 600x400mm |
| Audio | 20W*2 speaker+20W subwoofer |
| Accessories | Magnetic touch Pens*2, HDMI Cable*1, Touch USB Cable*1, Power Cable*1, Remoter*1, Wall mounting bracket *1,RS232 cable(optional),camera mounted screws,(optional) warranty certificate(optional), guide manual (integrated or print, optional) |
| Dimension | 1700x1047.8x82.6mm |
| Net weight (kgs) | 50Kgs |
Packing : 1pc/carton, optional with wooden crate or box
Shipping: by sea,by air, by truck optional
For more info, please check our data sheet
